Product Code : VPIP 05
Product Description

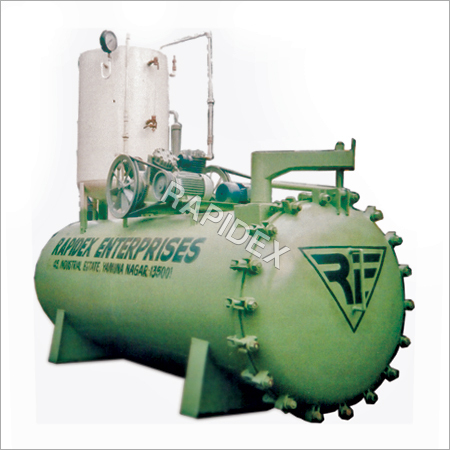

Vacuum Pressure Impregnation Plant

We are an “ISO 9001:2008” certified organization, engaged in offering the finest quality Vacuum Pressure Impregnation Plant that is used for various purposes in wood processing like dyeing and waxing of wooden pencil stars, monomer impregnation for wood plastic composites, fire retardant treatment and treatment with wood preserving chemicals. Designed using the best quality components, the offered plant is tested as per the defined “ISO” norms. We offer this Vacuum Pressure Impregnation Plant in various technical specializations as per the varied needs of the clients.

Length of such plants vary from 2m (6.5') to 12m (40') with diameters ranging from 60cm (2ft.) to 1.8 m (6ft.) Pressure cylinders are manufactured from high quality steel sheet of proper thickness (12mm of above) welded to dish ends so as ensure proper safety of the cylinder during operation. such vessels are tested to a maximum pressure of 21 kg/ cm2 (300psi.) Plants are fitted with a quick locking hanging door and are fully equipped with other accessories such as mixing tank with stirring arrangement, vacuum pump, centrifugal pump for quick transfer of preservative solutions (optional ) and hydraulic pump (Plunger type or Bulldozer type if required).

The plant is fabricated in our factory under close supervision for quality and workmanship and is supplied complete with piping connections, gauges, safety valves etc. Trolley loading is recommended for large size plants. Masonry constructions is recommended for storage tanks. MS tanks can however be fabricated and supplied is so desired. Erection and commissioning of plants is undertaken at nominal extra cost.

Latest and Heavy duty design with quick openable door, taper wedge type locking system easy and speedy vacuum - pressure and alternative pressure cycles, cap. 50 to 500 cft./ batch.
